High Power Laser Diodes

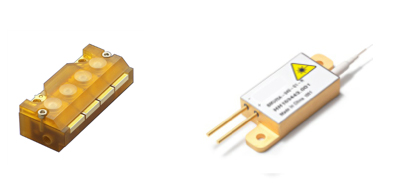

HighPowerLaserDiodes Optomark offers a comprehensive line of II-VI LASER ENTERPRISE High Power Laser Diodes:



Laser Category Part number Description Datasheet
Active Cooled Bars and Stacks Compact Bar on Microchannel cooler Offers>150W output power
Std. config.: 1 bar, with/without cover plate
WL: 808.9~1064nm
Options: FAC Lensing
Request info
Compact framed vertical stack module Offers up to 2KW output power
Std. config.: 12/20/36 bars
WL: 8xx/9xx/14xx nm
Options: FAC & SAC Lensing, beam shaping
Request info
Frameless vertical stac package Offers up to 800W output power
Std. config.: 3/8 bars
WL: 8xx/9xx/14xx nm
Options: FAC Lensing
Request info
Horitontal Linear Array Offers up to 300W output power
Std. config.: 4/5/6 bars
WL: 800/808/880/9xx/10xx nm
Options: FAC Lensing, beam shaping
Request info
Custom modules with FAC & SAC lensing, line beam homogenizing and design, large illumination patterns, special high power packaging, etc. to meet your demanding application needs Request info
Passive Cooled
 Bars
BLM 40 / 60W 79xnm & 8xxnm, 40W and 60W, 27% and 30% Fill Factor High Power Laser Diode Bar on Long passive Cu Mini-cooler The download folder seems to be invalid.
BLM 80 / 120 W 9xxnm & 10xxnm, 80W at 20% & 120W at 50% Fill Factor High Power Laser Diode Bar on Long passive Cu Mini-cooler Request info
HLM 50W 9xxnm & 10xxnm, 50W 18% Fill Factor High Power Laser Diode Half-bar on Long passive Cu Mini-cooler The download folder seems to be invalid.
BPC 40/60W 808nm, 40W at 27% & 60W at 30% Fill Factor High Power Laser Diode Bar on Passive Cu Block Cooler The download folder seems to be invalid.
BPC 80W 80W 9xxnm & 10xxnm 20% Fill Factor High Power Laser Diode Bar on Passive Cu Block Cooler Request info
HCS Collimated 808nm High Power Laser Diode Bar on Passive Cu Block Cooler The download folder seems to be invalid.
DCS Series 808nm 27% Fill Factor High Power Laser Diode Bar on Passive Cu Block Cooler Request info
Fiber-Coupled
Bars
Prosario Series 808/880/9xxnm Compact Fiber Coupled Diode Laser Bars with Detachable Fiber Request info
Orion Series 808/9xxnm 105/200µm High Brightness Fiber Coupled Mini-Bars Request info
BW Series 808nm up to 40W Fiber Coupled High Power Laser Diode Bar Request info
SF Series SF Series 830nm Uncooled Multimode Laser Diode Module Request info
Open Heatsink Single Emitters SCT Series 8xx nm Single Emitter Laser Diodes on CT-Mount Series Request info
SES4-808A/B/C-01 4W 808nm 90µm High Power Single Emitter Laser Diode on Submount The download folder seems to be invalid.
SEC4-808A/B/C-01 4W 808nm 90µm High Power Single Emitter Laser Diode on C-mount The download folder seems to be invalid.
SES7-808-01 7W 808nm High Power Single Emitter Laser Diode on Submount Request info
SEC7-808-01 7W 808nm High Power Single Emitter Laser Diode on C-Mount Request info
SES8-808A/B/C-01 8W 808nm 190µm High Power Single Emitter Laser Diode on Submount The download folder seems to be invalid.
SEC8-808A/B/C-01 8W 808nm 190m High Power Single Emitter Laser Diode on C-mount The download folder seems to be invalid.
SES9-9xx-01 9W 9xxnm 90µm High Power Single Emitter Laser Diode on Submount The download folder seems to be invalid.
SEC9-9xx-01 9W 9xx nm 90µm High Power Single Emitter Laser Diode on C-mount The download folder seems to be invalid.
SES11-9xx-02 11W 9xxnm 90µm High Power Single Emitter Laser Diode on Submount The download folder seems to be invalid.
LC96A1064BBFBG-20R Pulsed 1064nm Broad Bandwidth FBG High Power Laser Diode Module The download folder seems to be invalid.
Multimode Single Emitter Pumps BMU3-793-02-R 2.5W 793nm Uncooled Multimode Laser Diode Module The download folder seems to be invalid.
BMU4-808/C-02-R01/R02 3.5W 808nm Uncooled Multimode Laser Diode Module The download folder seems to be invalid.
BMU7-808/C-02-R01/R02 7W 808nm Uncooled Multimode Laser Diode Module The download folder seems to be invalid.
BMU8-9xx-01/02-R 8W 9xxnm Uncooled Multimode Laser Diode Module The download folder seems to be invalid.
BMU9/10A-9xx-01/02-R 9-10W 9xxnm Uncooled Multimode Laser Diode Module The download folder seems to be invalid.
BMU25A-9xx-01-R03 25W 9xxnm Uncooled Multimode Laser Diode Module The download folder seems to be invalid.
ProLite SF Series SF Series 830nm Uncooled Multimode Laser Diode Module Request info
Single Mode
Laser
LC95A76ULR-20R 976nm Laser Module Stabilized with Narrow-Bandwidth Grating The download folder seems to be invalid.
LC9610xxDFB Wavelength stabilized DFB single mode laser module The download folder seems to be invalid.
LC96A10xx-20R Pulsed 10xx nm High Power Laser Diode Module The download folder seems to be invalid.
LC96A1064BBFBG-20R Pulsed 1064nm Broad Bandwidth FBG High Power Laser Diode Module The download folder seems to be invalid.
LC96A10xxNBFBG-20R Pulsed 1064nm / 1030nm Narrow Bandwidth FBG High Power Laser Diode Module The download folder seems to be invalid.
980nm Single  Mode Laser 974nm Single Mode cooled and uncooled laser pumps Request info


info-icon If the parts you need are not listed here, please do not hesitate to contact us
